GDPR TCF and U.S. Multi-State Privacy (National) implementation guide (web)

Sourcepoint offers messaging capabilities for multiple regulatory and non-regulatory frameworks. These messages are surfaced to your end-users in accordance with the campaigns (and scenarios) that you enable for the property.

In this article, we will walk you through the essential steps necessary to launch your GDPR TCF and U.S. Multi-State Privacy (National) messaging campaigns on a single web property.

• Overview
• Portal configuration
• Install Sourcepoint implementation code on property
• Install resurface privacy manager codes on property
• APIs
• Launch campaigns

Overview

Portal configuration

Use the table below to track the necessary configurations that need to be performed within the Sourcepoint portal before adding the required code onto the property and launching your GDPR TCF and U.S. Multi-State Privacy (National) campaign.

Install Sourcepoint implementation code on property

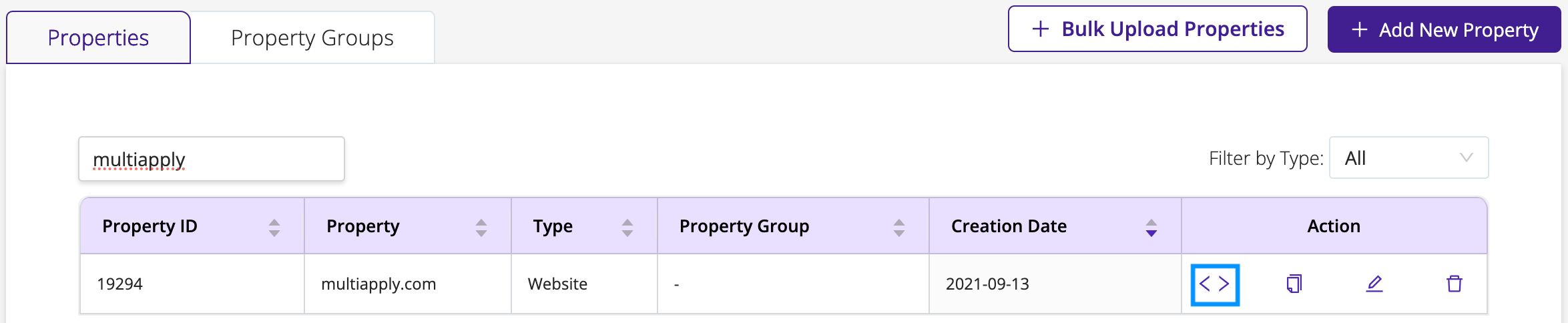

When you have completed the portal configuration for your property, click Properties on the left-hand panel and select Properties from the subsequent menu.

Click <> inline with the property name.

Use the Campaign Type dropdown menu to select GDPR Compliance and U.S. Multi-State Privacy. Next, select the GDPR IAB TCF and US IAB GPP radio buttons.

The implementation code snippet will automatically populate in the provided space.

Click Copy Code and add the implementation code snippet to your property.

The Sourcepoint implementation code snippet for GDPR TCF and U.S. Multi-State Privacy (National) campaigns is comprised of four scripts. Review the sections below for additional information and possible configuration options to suit your organization's use cases.

• Stub files
• Client configuration script
• URL to messaging library

//Example only. Please use stub file generated in Sourcepoint portal as it may have changed.
<script>
 function _typeof(t){return(_typeof="function"==typeof Symbol&&"symbol"==typeof Symbol.iterator?function(t){return typeof t}:function(t){return t&&"function"==typeof Symbol&&t.constructor===Symbol&&t!==Symbol.prototype?"symbol":typeof t})(t)}!function(){for(var t,e,o=[],n=window,r=n;r;){try{if(r.frames.__tcfapiLocator){t=r;break}}catch(t){}if(r===n.top)break;r=n.parent}t||(function t(){var e=n.document,o=!!n.frames.__tcfapiLocator;if(!o)if(e.body){var r=e.createElement("iframe");r.style.cssText="display:none",r.name="__tcfapiLocator",e.body.appendChild(r)}else setTimeout(t,5);return!o}(),n.__tcfapi=function(){for(var t=arguments.length,n=new Array(t),r=0;r<t;r++)n[r]=arguments[r];if(!n.length)return o;"setGdprApplies"===n[0]?n.length>3&&2===parseInt(n[1],10)&&"boolean"==typeof n[3]&&(e=n[3],"function"==typeof n[2]&&n[2]("set",!0)):"ping"===n[0]?"function"==typeof n[2]&&n[2]({gdprApplies:e,cmpLoaded:!1,cmpStatus:"stub"}):o.push(n)},n.addEventListener("message",(function(t){var e="string"==typeof t.data,o={};if(e)try{o=JSON.parse(t.data)}catch(t){}else o=t.data;var n="object"===_typeof(o)?o.__tcfapiCall:null;n&&window.__tcfapi(n.command,n.version,(function(o,r){var a={__tcfapiReturn:{returnValue:o,success:r,callId:n.callId}};t&&t.source&&t.source.postMessage&&t.source.postMessage(e?JSON.stringify(a):a,"*")}),n.parameter)}),!1))}();
</script>

 //Example only. Please use stub file generated in Sourcepoint portal as it may have changed
<script>
window.__gpp_addFrame=function(e){if(!window.frames[e])if(document.body){var t=document.createElement("iframe");t.style.cssText="display:none",t.name=e,document.body.appendChild(t)}else window.setTimeout(window.__gpp_addFrame,10,e)},window.__gpp_stub=function(){var e=arguments;if(__gpp.queue=__gpp.queue||[],__gpp.events=__gpp.events||[],!e.length||1==e.length&&"queue"==e[0])return __gpp.queue;if(1==e.length&&"events"==e[0])return __gpp.events;var t=e[0],p=e.length>1?e[1]:null,s=e.length>2?e[2]:null;if("ping"===t)p({gppVersion:"1.1",cmpStatus:"stub",cmpDisplayStatus:"hidden",signalStatus:"not ready",supportedAPIs:["2:tcfeuv2","5:tcfcav1","6:uspv1","7:usnat","8:usca","9:usva","10:usco","11:usut","12:usct"],cmpId:0,sectionList:[],applicableSections:[],gppString:"",parsedSections:{}},!0);else if("addEventListener"===t){"lastId"in __gpp||(__gpp.lastId=0),__gpp.lastId++;var n=__gpp.lastId;__gpp.events.push({id:n,callback:p,parameter:s}),p({eventName:"listenerRegistered",listenerId:n,data:!0,pingData:{gppVersion:"1.1",cmpStatus:"stub",cmpDisplayStatus:"hidden",signalStatus:"not ready",supportedAPIs:["2:tcfeuv2","5:tcfcav1","6:uspv1","7:usnat","8:usca","9:usva","10:usco","11:usut","12:usct"],cmpId:0,sectionList:[],applicableSections:[],gppString:"",parsedSections:{}}},!0)}else if("removeEventListener"===t){for(var a=!1,i=0;i<__gpp.events.length;i++)if(__gpp.events[i].id==s){__gpp.events.splice(i,1),a=!0;break}p({eventName:"listenerRemoved",listenerId:s,data:a,pingData:{gppVersion:"1.1",cmpStatus:"stub",cmpDisplayStatus:"hidden",signalStatus:"not ready",supportedAPIs:["2:tcfeuv2","5:tcfcav1","6:uspv1","7:usnat","8:usca","9:usva","10:usco","11:usut","12:usct"],cmpId:0,sectionList:[],applicableSections:[],gppString:"",parsedSections:{}}},!0)}else"hasSection"===t?p(!1,!0):"getSection"===t||"getField"===t?p(null,!0):__gpp.queue.push([].slice.apply(e))},window.__gpp_msghandler=function(e){var t="string"==typeof e.data;try{var p=t?JSON.parse(e.data):e.data}catch(e){p=null}if("object"==typeof p&&null!==p&&"__gppCall"in p){var s=p.__gppCall;window.__gpp(s.command,(function(p,n){var a={__gppReturn:{returnValue:p,success:n,callId:s.callId}};e.source.postMessage(t?JSON.stringify(a):a,"*")}),"parameter"in s?s.parameter:null,"version"in s?s.version:"1.1")}},"__gpp"in window&&"function"==typeof window.__gpp||(window.__gpp=window.__gpp_stub,window.addEventListener("message",window.__gpp_msghandler,!1),window.__gpp_addFrame("__gppLocator"));
</script>

    <script>
    window._sp_queue = [];
    window._sp_ = {
        config: {
            accountId: 22,
            baseEndpoint: 'https://cdn.privacy-mgmt.com',
            gdpr: { },
            usnat: { },
            events: {
                onMessageChoiceSelect: function() {
                    console.log('[event] onMessageChoiceSelect', arguments);
                },
                onMessageReady: function() {
                    console.log('[event] onMessageReady', arguments);
                },
                onMessageChoiceError: function() {
                    console.log('[event] onMessageChoiceError', arguments);
                },
                onPrivacyManagerAction: function() {
                    console.log('[event] onPrivacyManagerAction', arguments);
                },
                onPMCancel: function() {
                    console.log('[event] onPMCancel', arguments);
                },
                onMessageReceiveData: function() {
                    console.log('[event] onMessageReceiveData', arguments);
                },
                onSPPMObjectReady: function() {
                    console.log('[event] onSPPMObjectReady', arguments);
                },
                onConsentReady: function (consentUUID, euconsent) {
                    console.log('[event] onConsentReady', arguments);
                },
                onError: function() {
                    console.log('[event] onError', arguments);
                },
            }
        }
    }
</script>

<script src="https://cdn.privacy-mgmt.com/unified/wrapperMessagingWithoutDetection.js" async></script>

The first part of the implementation code snippet is comprised of two scripts and contains IAB stub functions. The stub functions set up the IAB privacy string object __tcfapi and __gpp, respectively. This makes it available on queue to be called and released when needed. It is important to have these script tags in the first position to avoid errors and failure of service.

//Example only. Please use stub file generated in Sourcepoint portal as it may have changed.
<script>
 function _typeof(t){return(_typeof="function"==typeof Symbol&&"symbol"==typeof Symbol.iterator?function(t){return typeof t}:function(t){return t&&"function"==typeof Symbol&&t.constructor===Symbol&&t!==Symbol.prototype?"symbol":typeof t})(t)}!function(){for(var t,e,o=[],n=window,r=n;r;){try{if(r.frames.__tcfapiLocator){t=r;break}}catch(t){}if(r===n.top)break;r=n.parent}t||(function t(){var e=n.document,o=!!n.frames.__tcfapiLocator;if(!o)if(e.body){var r=e.createElement("iframe");r.style.cssText="display:none",r.name="__tcfapiLocator",e.body.appendChild(r)}else setTimeout(t,5);return!o}(),n.__tcfapi=function(){for(var t=arguments.length,n=new Array(t),r=0;r<t;r++)n[r]=arguments[r];if(!n.length)return o;"setGdprApplies"===n[0]?n.length>3&&2===parseInt(n[1],10)&&"boolean"==typeof n[3]&&(e=n[3],"function"==typeof n[2]&&n[2]("set",!0)):"ping"===n[0]?"function"==typeof n[2]&&n[2]({gdprApplies:e,cmpLoaded:!1,cmpStatus:"stub"}):o.push(n)},n.addEventListener("message",(function(t){var e="string"==typeof t.data,o={};if(e)try{o=JSON.parse(t.data)}catch(t){}else o=t.data;var n="object"===_typeof(o)?o.__tcfapiCall:null;n&&window.__tcfapi(n.command,n.version,(function(o,r){var a={__tcfapiReturn:{returnValue:o,success:r,callId:n.callId}};t&&t.source&&t.source.postMessage&&t.source.postMessage(e?JSON.stringify(a):a,"*")}),n.parameter)}),!1))}();
</script>

 //Example only. Please use stub file generated in Sourcepoint portal as it may have changed
<script>
window.__gpp_addFrame=function(e){if(!window.frames[e])if(document.body){var t=document.createElement("iframe");t.style.cssText="display:none",t.name=e,document.body.appendChild(t)}else window.setTimeout(window.__gpp_addFrame,10,e)},window.__gpp_stub=function(){var e=arguments;if(__gpp.queue=__gpp.queue||[],__gpp.events=__gpp.events||[],!e.length||1==e.length&&"queue"==e[0])return __gpp.queue;if(1==e.length&&"events"==e[0])return __gpp.events;var t=e[0],p=e.length>1?e[1]:null,s=e.length>2?e[2]:null;if("ping"===t)p({gppVersion:"1.1",cmpStatus:"stub",cmpDisplayStatus:"hidden",signalStatus:"not ready",supportedAPIs:["2:tcfeuv2","5:tcfcav1","6:uspv1","7:usnat","8:usca","9:usva","10:usco","11:usut","12:usct"],cmpId:0,sectionList:[],applicableSections:[],gppString:"",parsedSections:{}},!0);else if("addEventListener"===t){"lastId"in __gpp||(__gpp.lastId=0),__gpp.lastId++;var n=__gpp.lastId;__gpp.events.push({id:n,callback:p,parameter:s}),p({eventName:"listenerRegistered",listenerId:n,data:!0,pingData:{gppVersion:"1.1",cmpStatus:"stub",cmpDisplayStatus:"hidden",signalStatus:"not ready",supportedAPIs:["2:tcfeuv2","5:tcfcav1","6:uspv1","7:usnat","8:usca","9:usva","10:usco","11:usut","12:usct"],cmpId:0,sectionList:[],applicableSections:[],gppString:"",parsedSections:{}}},!0)}else if("removeEventListener"===t){for(var a=!1,i=0;i<__gpp.events.length;i++)if(__gpp.events[i].id==s){__gpp.events.splice(i,1),a=!0;break}p({eventName:"listenerRemoved",listenerId:s,data:a,pingData:{gppVersion:"1.1",cmpStatus:"stub",cmpDisplayStatus:"hidden",signalStatus:"not ready",supportedAPIs:["2:tcfeuv2","5:tcfcav1","6:uspv1","7:usnat","8:usca","9:usva","10:usco","11:usut","12:usct"],cmpId:0,sectionList:[],applicableSections:[],gppString:"",parsedSections:{}}},!0)}else"hasSection"===t?p(!1,!0):"getSection"===t||"getField"===t?p(null,!0):__gpp.queue.push([].slice.apply(e))},window.__gpp_msghandler=function(e){var t="string"==typeof e.data;try{var p=t?JSON.parse(e.data):e.data}catch(e){p=null}if("object"==typeof p&&null!==p&&"__gppCall"in p){var s=p.__gppCall;window.__gpp(s.command,(function(p,n){var a={__gppReturn:{returnValue:p,success:n,callId:s.callId}};e.source.postMessage(t?JSON.stringify(a):a,"*")}),"parameter"in s?s.parameter:null,"version"in s?s.version:"1.1")}},"__gpp"in window&&"function"==typeof window.__gpp||(window.__gpp=window.__gpp_stub,window.addEventListener("message",window.__gpp_msghandler,!1),window.__gpp_addFrame("__gppLocator"));
</script>

Client configuration script

The client configuration script contains your organization's specific account configuration parameters. This configuration includes the necessary and optional parameters for your property to communicate with the Sourcepoint messaging platform and consent service libraries.

Currently, there are 5 required properties for this implementation:

In addition to the required parameters (above), your organization can further implement additional parameters and customizations in the code snippet for different use cases. Follow the resources below for additional information

• Configure subdomain with CNAME
• Optional client configuration parameters
• Optional event callback

<script>
window._sp_queue = [];
window._sp_ = {
    config: {
        accountId: 12123,
        baseEndpoint: 'https://cdn.privacy-mgmt.com',
        propertyHref: 'https://testdemo.com',
        gdpr: {},
        usnat: {}
    }
}
</script>

URL to messaging library

The final script is a URL that points to Sourcepoint's messaging libraries. The default URL is as follows:

In the developer console, the URL to the messaging library can return the following regardless of whether a message was shown to the user:

Install resurface privacy manager codes on property

Many organizations will want to add a button/link onto their web property that allows an end-user to resurface the privacy manager so they can manager their privacy choice preferences on an ongoing basis.

Typically, the JavaScript code on their page will attach the function to the onclick event of a page element. Click here for more information on how to retrieve the privacy manager ID and implement the JavaScript code.

APIs

In addition to the implementation code that is added to your property, your organization can leverage IAB and Sourcepoint designed APIs to further customize and test your implementation. Information on the commands available with the __tcfapi and __gpp call can be found in our developer hub:

GDPR TCF API

U.S. Multi-State Privacy API

Launch campaigns

With the property configured in the portal and Sourcepoint's implementation code snippet added to the web property, your organization can now launch a GDPR TCF and U.S. Multi-State Privacy campaign on the property and test the end-user flow.
